Wire Saw Machine
Innovative Wire Saw Machines by New Great India Engineering Works
New Great India Engineering Works develops top-quality wire saw machines that enable precise cutting of marble and granite efficiently. Our cutting-edge machine designs help the stone sector work more productively while staying easy to maintain.
Without Spindal Wire Saw (Low Maintenance)
- Engineered to eliminate the spindle from the Choras Box, ensuring a simpler, more reliable design.
- The main wheel runs directly on the main shaft, reducing the chances of mechanical failures.
- This innovative approach makes the machine low maintenance and highly efficient, minimizing downtime.
- Available in 40 HP, 60 HP, and 75 HP variants, catering to various cutting requirements.
Suitability
- Ideal for continuous and long-duration cutting in large-scale stone processing units.
- Suitable for marble and granite quarries where reducing maintenance time is crucial.
- Perfect for operations requiring high efficiency and minimal downtime.

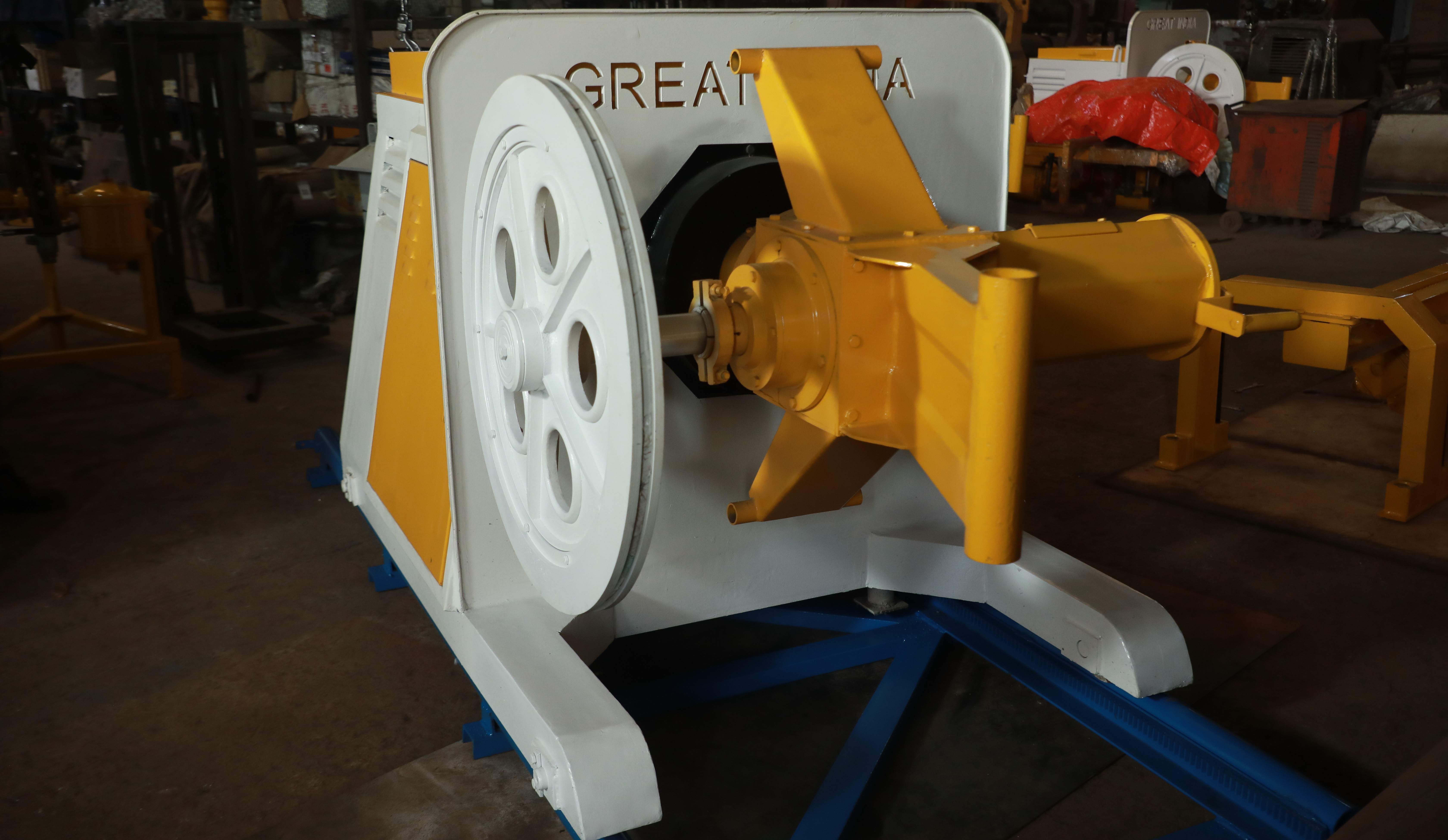

Auto Rotation Wire Saw
- Features an advanced wheel rotation system for efficient bottom cutting.
- Equipped with a handle system for easy wheel movement, allowing the wheels to move in and out effortlessly.
- Middle-type gearbox ensures straight, precise cuts.
- Available in 40 HP, 60 HP, and 75 HP variants.
Suitability
- Perfect for quarry and block cutting operations.
- Ideal for precise granite and marble cutting.
- Suitable for workshops requiring minimal waste.

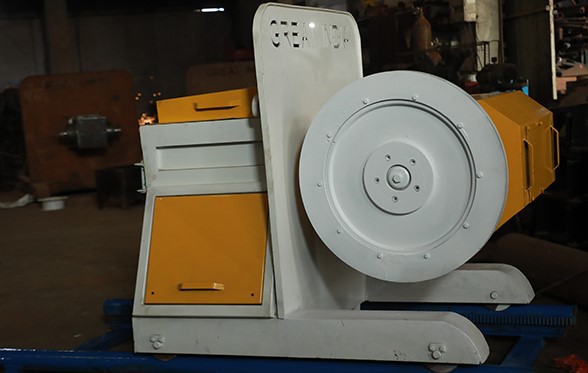

Direct Motor System
- Main wheel directly mounted on motor for maximum efficiency.
- Operates at 960 RPM for smooth block dressing.
- Highly durable and energy-efficient design.
- Available in 20 HP variant.
Suitability
- Perfect for block dressing and shaping.
- Ideal for smooth and refined cuts.
- Suitable for small to medium operations.
TECHNICAL SPECIFICATIONS
| PARTICULARS | MODEL 20 HP | MODEL 40 HP | MODEL 60 HP | MODEL 75 HP |
|---|---|---|---|---|
| System Power | DC POWER 1HP (2HP OPTIONAL), Variable Speed | DC POWER 1HP (2HP OPTIONAL), Variable Speed | DC POWER 1HP (2HP OPTIONAL), Variable Speed | DC POWER 1HP (2HP OPTIONAL), Variable Speed |
| Main Motor Power | 20 HP (960/1440 RPM) | 40 HP | 60 HP | 75 HP |
| Control Panel | Independent | Independent | Independent | Independent |
| Main Pulley Diameter | 600 mm | 790 mm | 790/800 mm | 790/800 mm |
| Dimensions (L×W×H) | 1220×920×965 mm | 1625×1230×1040 mm | 1625×1230×1040 mm | 1980×1370×1270 mm |
| Weight | 800-1000 KG approx | 1400 KG approx | 1600 KG approx | 1800 KG approx |
